The UX10 Series 100W UFO LED High Bay light for Warehouses and Supermarkets has up to 180Lm/W high lumen efficiency with ADC12 aluminum heat sinking and IK10/IP65 protection. The UFO LED high bay light UX10 series is newly designed with high standard for high bay lighting in factories, workshops, warehouses, gyms, gas stations, supermarkets, exhibition halls, parking garages, airports, subways, shopping malls and other areas. It is housed by ADC12 heatsinking aluminum with thermal convection design. The protection degree is IP65 waterproof.
Features:
High efficacy: up to 180LM/W
Fresnel lens, flexible for different LED quantity
60°/90°/120°beam angle optional
ADC12 aluminum, tempered glass/lens
Lumileds/San’an LED, high lumen, long-lasting stability
Meanwell or other Branded LED driver.
Stainless steel screw. Maintenance free
Aluminum or PC reflector optional
Input Voltage: AC100-240V, 50 /60Hz
Protection: IK10/IP65
CE & RoHS compliant
5 years warranty

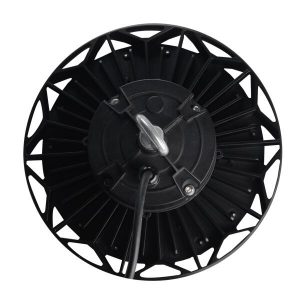

Excellent heat sinking
ADC12 aluminum, Tempered glass/lens, Protection: IK10/IP65
Fresnel lens
Fresnel lens, flexible for different LED quantity configuration
Technical data:
| Model | Power (W) |
LED | CCT | Voltage /Current |
Lumens (LM) |
Beam Angle |
Dimension (mm) |
| HB-100W-UX10-WW/NW/CW | 100W | 2835 | 2800-3200K 3750-4250K 4750-5250K 5700-6500K |
AC100-240V | 150LM/W | 60°/90°/120° | Φ230*170mm |
Packaging:
| Model | Power (W) |
Dimension (mm) |
QTY
(pcs) |
Carton
Size (cm) |
G.W.
/Carton |
Net
Weight |
| HB-100W-UX10-WW/NW/CW | 100W | Φ230*170mm | 1 | 27*27*18 | 2.6kg | 2.5kg |
Dimensions:
Production and aging:
Applications:
