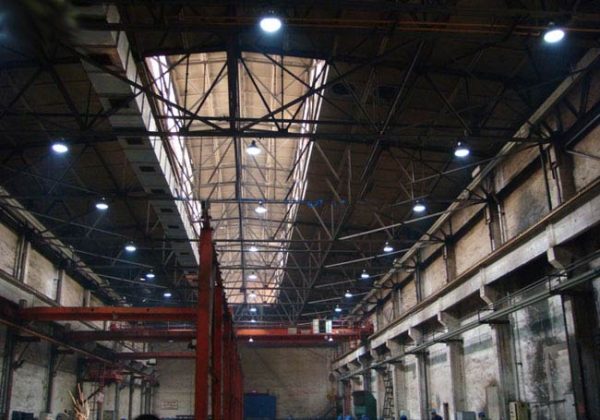

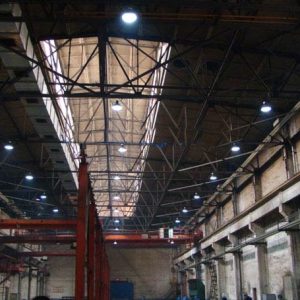

Haichang Modular series LED High Bay Lights,designed to replace HID lamps, are made of aluminum alloy and Philips Lumileds high power LEDs. Adopting modular design, different numbers of modules can be plugged on or off to get different powers. Meanwhile, the integral heat dissipation technology and Honeycomb briquette design make sure fast cooling during operation. With lumen maintenance of L70 at over 50,000 hours long life, maintenance costs can be significantly reduced. As a leading manufacturer and suppliers in China, Haichang Modular LED High Bay Light can be installed both indoor and outdoor, thanks to double-coupling IP68 protection.
Features:
Philips-Lumileds LEDs, flip chip technology, single unit’s damage won’t affect others’ normal work
Modular design, hot-pluggable technology, easy onsite maintenance and replacement
Honeycomb briquette burning effect heat dissipation principle, whole structure cooling technology
Double-coupling IP68 protection for module, highest waterproof level
Wide power range: 30W~400W
Lumen maintenance of L70 at 50,000 hours, significantly reduce maintenance cost
Ergonomic lighting distribution to achieve uniform illuminating effect
Free modular serialization, various power solutions
Aluminum housing
Multiple housing colors: black, white, grey, blue
3 years warranty
Special Technical Advantages:
Honeycomb Briquette lighting effect
It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.

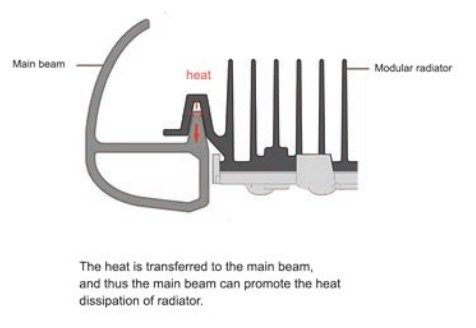

Integral Heat dissipation
It makes clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to enhance cooling effect of radiator of cooling module. The design aims to fully utilize the surface area of structural parts to transfer heat to air.
Tool-free maintenance
Using special structural design to enable manual disassembly and installation of lighting components, convenient and safe.

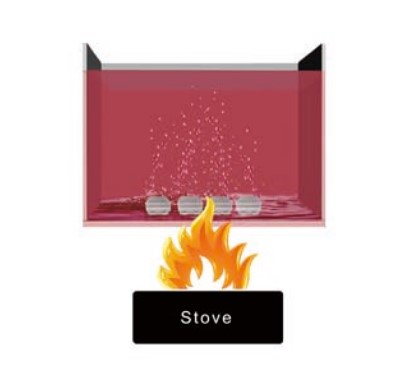

Double-coupling IP68 protection
It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole; its double silicon-rubber rings insulate LEDs with the outside environment completely, thus to eliminate the possibility of any erosion to chips and PCB boards from outside.
High-efficacy LED Light source
It adopts Lumileds LUXEON T LED source with super efficacy and light output from a compact source. Optimized for efficacy driven applications with typical Vf: 2.7V and low thermal resistance: 3K/W. Specified, targeted and tested hot, at real world operating temperatures, Tj=85℃ to ensure in- application performance.

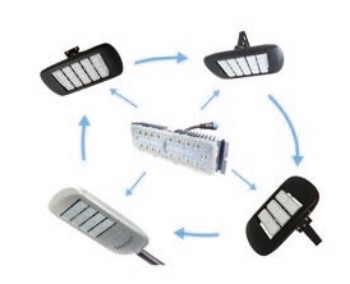

Free Serialization
It is available to freely equip with different numbers of modules to achieve different power according to the needs.
Electrical, Photometric and Environmental Specification
Input Voltage: AC100-277V
Standard color temperatures: 3000K, 4000K, 5000K, 5700K
Surge Protection: 4KV
Storage Temperature: -40℃～+50℃
Working Environment: -40℃～+50℃, 10%～90%RH
| Model | Driving Current (mA) | Power (W) | Luminous Efficacy (lm/W) |
Flux (lm) |
PF | Power Efficiency | Beam Angle | LED Brand | CRI |
| HC-TF2C-1 | 700 | 40 | 110±5 | 4400±200 | 0.95 | 89% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 50 | 105±5 | 5250±250 | ||||||
| 1050 | 60 | 100±5 | 6000±300 | ||||||
| HC-TF2C-2 | 700 | 80 | 110±5 | 8800±400 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 100 | 105±5 | 10500±500 | ||||||
| 1050 | 120 | 100±5 | 12000±600 | ||||||
| HC-TF2C-3 | 700 | 120 | 110±5 | 13200±600 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 150 | 105±5 | 15750±750 | ||||||
| 1050 | 180 | 100±5 | 18000±900 | ||||||
| HC-TF2C-4 | 700 | 160 | 110±5 | 17600±800 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 200 | 105±5 | 21000±1000 | ||||||
| 1050 | 240 | 100±5 | 24000±1200 | ||||||
| HC-TF2C-5 | 700 | 200 | 110±5 | 22000±1000 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 250 | 105±5 | 26250±1250 | ||||||
| 1050 | 300 | 100±5 | 30000±1500 | ||||||
| HC-TF2C-6 | 700 | 240 | 110±5 | 26400±1200 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 300 | 105±5 | 31500±1500 | ||||||
| 1050 | 360 | 100±5 | 36000±1800 | ||||||
| HC-TF2C-7 | 700 | 280 | 110±5 | 30800±1400 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 350 | 105±5 | 36750±1750 |

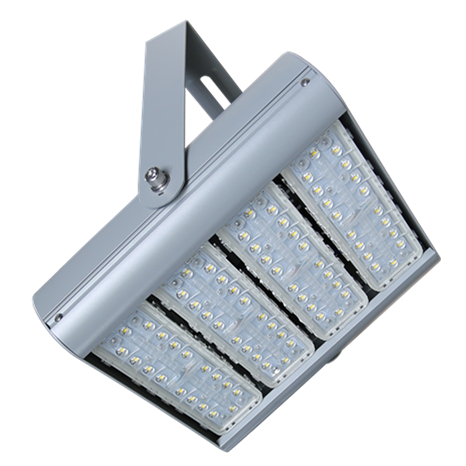

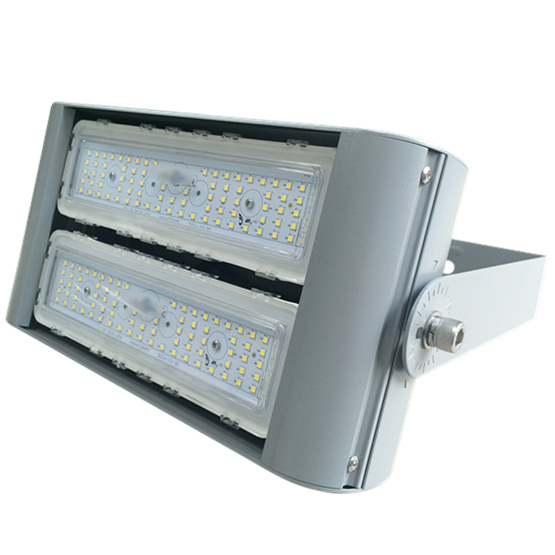

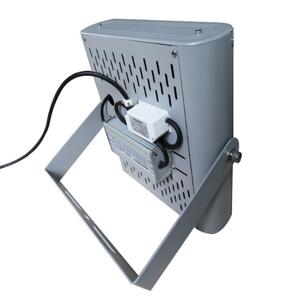

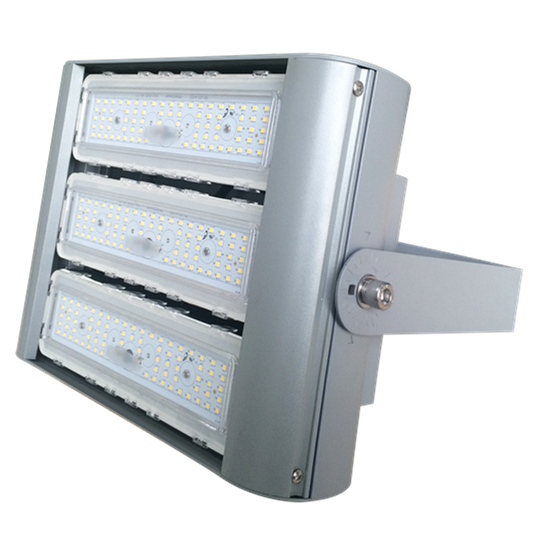

Drawing

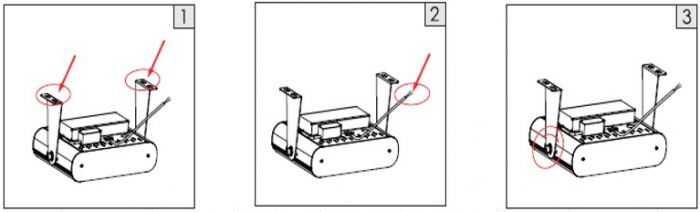

Installation
Step 1: Mount the light to the wall with screws at the mounting holes on the bracket;
Step 2: Connect the wires to the AC wires. (The earth wire should be reliable and linked to the ground);
Step 3: Adjust the angle of the bracket (see Instructions on Adjustable Mounting Bracket in appendix).
Maintenance
Step 1: Unscrew the 4 x set screws on the main beam covers at both sides and remove the 2 main beam covers.
Step 2: Loosen the screws at both ends of the failed module(s) and pull out the module (s).
Step 3: Disconnect the waterproof connectors, remove the module(s) and replace the failed module(s) with qualified one(s);
Step 4: Connect and tighten up the waterproof connectors, install the module (s) back, close the main beam covers both sides and tighten the screws on them.
Packaging details:
| Model | Product Size (mm) |
Packing Size (mm) | N.W (kg) |
G.W (kg) |
|
| HC-TF2C-1 | 360*200*95 | 430*265*150 | 3.2 | 4.1 | |
| HC-TF2C-2 | 360*200*175 | 430*265*230 | 4.7 | 5.7 | |
| HC-TF2C-3 | 360*260*255 | 430*335*330 | 5.6 | 6.6 | |
| HC-TF2C-4 | 360*260*335 | 475*430*210 | 6.7 | 8.0 | |
| HC-TF2C-5 | 360*360*415 | 615*430*210 | 8.4 | 9.9 | |
| HC-TF2C-6 | 360*360*495 | 660*430*210 | 9.4 | 11.1 | |
| HC-TF2C-7 | 360*360*575 | 695*430*210 | 10.1 | 11.6 |
