Aluminum TOP LED bars, under cabinet LED bars – Haichang Optotech

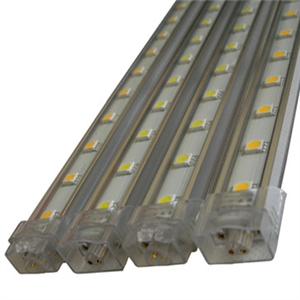

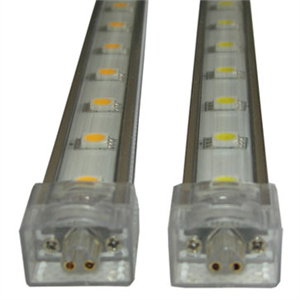

We supply LED bars with aluminum housing and PC cover, featured by: Dimmable by LED dimmer switch; quick mounting, super bright, 200mm~1000mm length available, low voltage, extremely low heat, Minimum 50,000 hours lifetime. It is easy to be extended to any length through connection cables or connecting directly between each two bars through the male and female terminals. Our LED bars are widely used for under cabinet lighting, cove lighting, advertising back lighting and many more places. Compliant with CE & RoHS standard. Two-year warranty.
Product Features:
0-100% brightness dimmable by our LED dimmer switch
Adopt unique and high efficiency heat sinking design with aluminous alloy housing and PC cover
PMMA lens with wide angle with light transmission rate at 92%
50,000 hours lifespan; Energy saving
Good thermal transmission, anti-corrosion and anti-UV
Length of each bar: 20cm, 50cm, 60cm, 100cm. Other special sizes available upon request

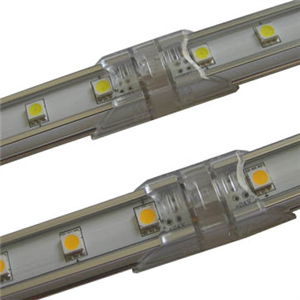

Easy to be extended to any length by direct plug-in or through connection cables
Light source: Super bright 3-in-1 5050 SMD LED

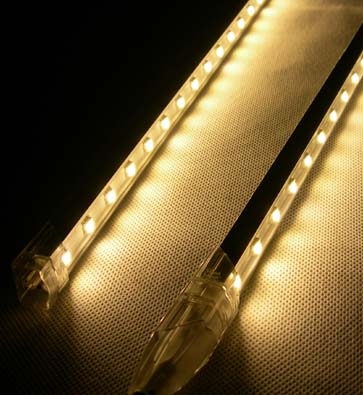

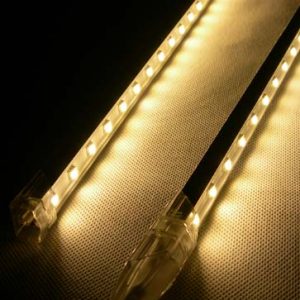

Available color: White (4000-7000K), Warm White (2700-3500K), Red, Green, Blue
IP Grade: IP51
Compliant with CE & RoHS
Technical datas:
Bar Length | Item No. | Emitting color | Luminous Flux (LM) |
Working Voltage(V) |
Wattage (W) |
20cm | TOPT-DW09P03 | Daylight White (5000-7000K) | 140 | DC24 | 2.5±0.5W |
20cm | TOPT-NW09P03 | Nature White (3500-5000k) | 122 | DC24 | 2.5±0.5W |
20cm | TOPT-WW09P03 | Warm White (2700-3500K) | 105 | DC24 | 2.5±0.5W |
50cm | TOPT-DW24P06 | Daylight White (5000-7000K) | 350 | DC24 | 6±1W |
50cm | TOPT-NW24P06 | Nature White (3500-5000k) | 330 | DC24 | 6±1W |
50cm | TOPT-WW24P06 | Warm White (2700-3500K) | 295 | DC24 | 6±1W |
60cm | TOPT-DW27P07 | Daylight White (5000-7000K) | 380 | DC24 | 7±1W |
60cm | TOPT-NW27P07 | Nature White (3500-5000k) | 345 | DC24 | 7±1W |
60cm | TOPT-WW27P07 | Warm White (2700-3500K) | 305 | DC24 | 7±1W |
100cm | TOPT-DW48P12 | Daylight White (5000-7000K) | 650 | DC24 | 12±1W |
100cm | TOPT-NW48P12 | Nature White (3500-5000k) | 610 | DC24 | 12±1W |
Application:
Our LED light bars are suitable for LED under cabinet lighting, house decoration, pub, cove lighting, cellaret, shoes shelves, ceiling, wardrobe, hotel decoration, advertising back lighting etc.

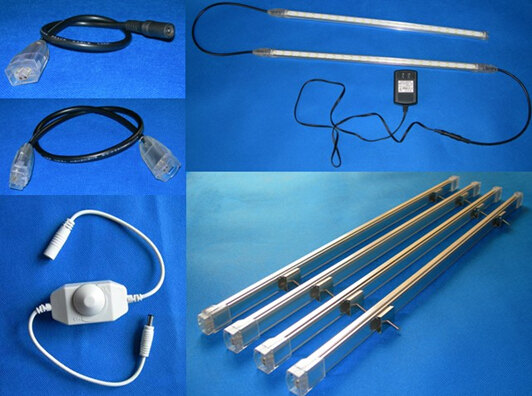

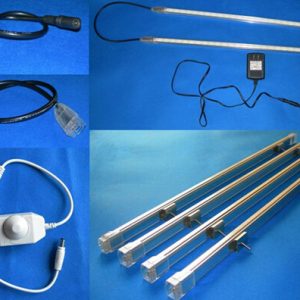

Install Accessories:
Interconnection cable for LED bar:
It is used to connect seamlessly between two piece of LED bars, through the male and female terminals. Through this cable, the LED bar can be extended to any length you wish.
Power cable for LED bar:

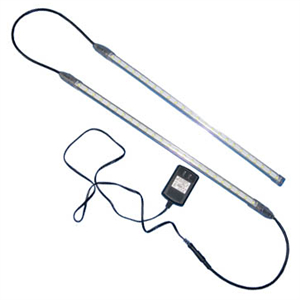

It is used to connect between LED bar and adaptor (power supply), through the male and female terminals.
LED Adaptor 24V or 12V DC:
Input voltage: 100-240V AC
Output voltage: 12V DC or 24V DC
Max power: 96W for 24V, 48W for 12V
connection through Jack connector
IP degree: IP55
Short circuit protection
Overload protection
-20℃ to 70℃ operation
CE & RoHS certified
Two-year warranty
