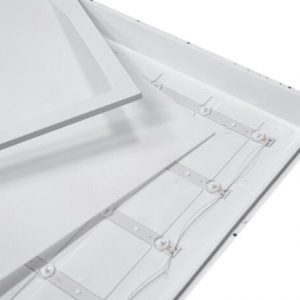

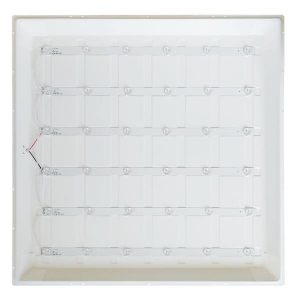

Unlike edge-lit LED panel lights, the backlit LED panel lights have direct lighting design with LEDs allocated in the center part of the panel instead of on the sides. The direct-lit lighting design creates super bright light effect with higher light efficiency. There’s no LGP (light guide plate) which make the whole light fixture has less weight and less cost. UGR<19 and CCT switchable available upon client’s request. The backlit led panel lights have various sizes including 1x1ft(295x295mm), 1x2ft(295x595mm), 2x2ft(595X595mm),1x4ft(295x1195mm) and 2x4ft(595x1195mm). The power ranges from 20W, 25W, 40W to 60W. This series of backlit LED panel lights are also DALI dimmable, Triac dimmable and 0-10V dimmable.
Features of Backlit LED Panel Lights:
Direct lighting design – backlit LED, super bright, perfect light effect
Material: FE + PS
3030/4014/2835 SMD LED, CRI>80, Beam angle:120°.
High efficiency: 100Lm/W. PF>0.9
Less weight and cost than Edge-lit LED panel
Even light output, flicker free, instant start, 50000 hours lifetime
CE, RoHS compliant
5 years solid warranty
AC200-240V input
Optional: DALI Dimming/Triac Dimmable/0-10V Dimming, CCT switch, UGR<19
Panel size:
| Type | 300x300mm
20W |
600x300mm
25W |
600x600mm
40W |
1200x300mm
40W |
1200x600mm
60W |
| A: Length (mm) | 295±0.2 | 595±0.2 | 595±0.2 | 1195±0.2 | 1195±0.2 |
| B: Width(mm) | 295±0.2 | 295±0.2 | 595±0.2 | 295±0.2 | 595±0.2 |
| C: Thick(mm) | 30±0.2 | 30±0.2 | 30±0.2 | 30±0.2 | 30±0.2 |
Technical Descriptions:
LED type: Epistar 3030/4014/2835 SMD LED
Emitting Colors available: White(4000-7000K), Warm white(2500-4000K)
Light-emitting angle: 120 degree
Life: 50000 hours
| Model | Color | Size (mm) |
Voltage /Current |
Power (W) |
Lumens (LM) |
| PNL3030BL-300×300-12-W/WW/NW | 2700-6500K | 295*295*30 | DC36-40V 500mA |
20W | 2000 |
| PNL3030BL-600×300-24-W/WW/NW | 2700-6500K | 595*295*30 | DC36-40V 600mA |
25W | 2500 |
| PNL3030BL-600×600-36/40-W/WW/NW | 2700-6500K | 595*595*30 | DC36-40V 1000mA |
40W | 4000 |
| PNL3030BL-1200×300-36/40-W/WW/NW | 2700-6500K | 1195*295*30 | DC36-40V 1000mA |
40W | 4000 |
| PNL3030BL-1200×600-55/60-W/WW/NW | 2700-6500K | 1195*595*30 | DC36-40V 1800mA |
60W | 6000 |

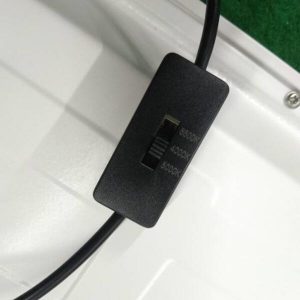

CCT Switchable:
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects. Widely used in commercial or home indoor lighting such as shopping mall, supermarket, conference room, exhibition hall, hotel, office, school, library, hospital, etc..
Packaging:
Packaging of 300x300mm LED panel light:
Outer carton: 500*410*360mm
Quantity: 10 units/carton
Net weight: 0.57kg/unit
Gross weight: 7.6kg/carton
Packaging of 600×300 LED panel light:
Outer carton: 710*360*260mm
Quantity: 5 units/carton
Net weight: 1.1kg/unit
Gross weight: 6.9kg/carton
Packaging of 600×600 LED panel light:
Outer carton: 710*660*260mm
Quantity: 5 units/carton
Net weight: 1.7kg/unit
Gross weight: 15.4kg/carton
Packaging of 1200×300 LED panel light:
Outer carton: 1300*370*270mm
Quantity: 5 units/carton
Net weight: 1.9kg/unit
Gross weight: 13.2kg/carton
Packaging of 1200×600 LED panel light:
Outer carton: 1300*670*200mm
Quantity: 5 units/carton
Net weight: 3.7kg/unit
Gross weight: 17kg/carton
Installation Guide
A. Hanging/Suspension installation
B. Embedded Installation by Spring clip
C. Recessed mounting (ceiling embedded)
D. Surface mounting
