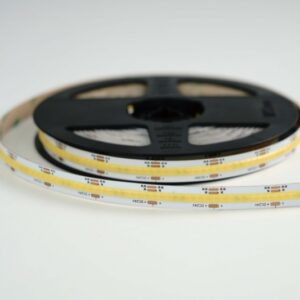

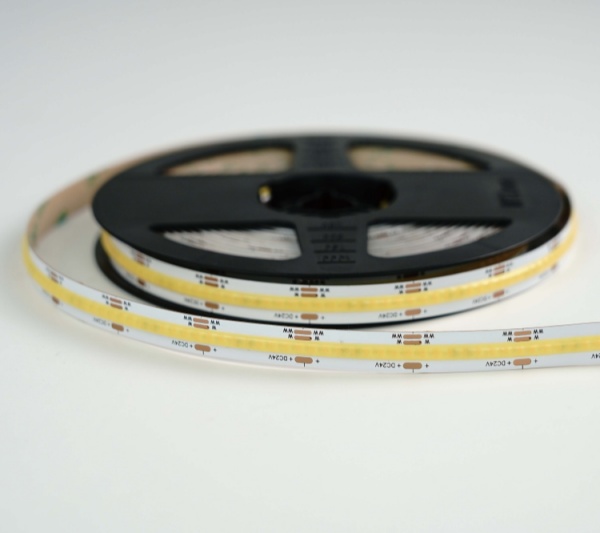

Outstanding features of CCT Tunable White COB Dim to Warm LED Strip lights:
Dim to Warm: Dynamic Warm white (2700K) and Daylight Whit(6500K)
High density LEDs: 576LED/M, 588LED/M, 608LED/M, 640LED/M, uniform lighting
Small Cuttable length, suit precise field installation
SDCM≤3, Consistent Color
180°beam angle
Dotless, 0 Hot Spots
Dimmable
3-5 years warranty
Technical data of CCT Tunable White COB tape Dim to Warm LED Strip lights 576LED:
Cuttable length: 27.78mm
PCB width: 10mm
Input voltage: DC12V
CRI(Ra): >90
CCT: 2700K+6000K
Power: 15W/M
Luminous Flux: 1500Lm/M
Light efficiency: 100Lm/W
Max. run length: 5M
LED quantity: 576LEDs/m
Beam angle: 180°
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Technical data of CCT Tunable White COB tape Dim to Warm LED Strip lights 608LED:
Cuttable length: 13.15mm, 26.31mm
PCB width: 10mm
Input voltage: DC12V, DC24V
CRI(Ra): >90
CCT: 2700K+6000K
Power: 22W/M
Luminous Flux: 1980Lm/M
Light efficiency: 90Lm/W
Max. run length: 5M
LED quantity: 608LEDs/m
Beam angle: 180°
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Technical data of CCT Tunable White COB tape Dim to Warm LED Strip lights 640LED:
Cuttable length: 50mm
PCB width: 10mm
Input voltage: DC24V
CRI(Ra): >90
CCT: 2700K+6000K
Power: 15W/M
Luminous Flux: 1650Lm/M
Light efficiency: 110Lm/W
Max. run length: 5M
LED quantity: 640LEDs/m
Beam angle: 180°
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Technical data of CCT Tunable White COB tape Dim to Warm LED Strip lights 588LED:
Cuttable length: 72.5mm
PCB width: 12mm
Input voltage: DC24V
CRI(Ra): >90
CCT: 1800K+3000K
Power: 15W/M
Luminous Flux: 0~12Lm/M
Light efficiency: 0.8Lm/W
Max. run length: 5M
LED quantity: 588LEDs/m
Beam angle: 180°
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Applications:
The CCT Tunable White COB Dim to Warm LED Strip lights are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting in homes, rooms or yards
4. Replace traditional under cabinet lights
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor and outdoor use
