Constant Current Flexible LED Strips

•

•

Haichang Super long Constant Current LED Strips are specially designed for users who intend to drive 10m, 15m, 20m, 30m meters (100ft)  up to 100 meters super long distance strips by only one driver at one end while have accurate color and brightness at each part of the strips. Through integrated IC chips on board, the electric current on each LED is rated to exactly same value. This technology enables exactly same light output at every part of the led strips, despite of possible voltage drops at the installation site.

For normal constant voltage led strip like Dc12v or Dc24v, there will be more or less voltage drop at both ends of the strips. To solve this issue, usually we recommend clients to wire the driver to both ends of the driver and collect the led strips in parallel, or use 24v instead of 12v strips to decrease the voltage drop. By this solution, the connection length for each circuit should not exceed 10m for 24v or 5m for 12 volt.

By using Constant Current LED light Strips, one driver (power supply) can drive one unit of LED strip with continuous lengths of 10m, 15m, 20m, 30m or even 100m. Compared to constant voltage led strip, there will be no issue of voltage drop, less degradation on LED, less drivers, less wiring, easier and faster installation and longer lifetime.

TOP reasons to buy Constant Current LED Strips

Constant current design, up to 100m long length per unit
No voltage drop
Even brightness at every part of the strips
Less drivers needed, less wiring, easier installation
Stable working current, safe, durable, longer Lifetime
2835/5050 SMD LED, SDCM<3, CRI>90, proved high quality
Dimmable, beam angle 120°
Cuttable and reconnectable
IP65/UV protection, no color shift
CE, ROHS, UL, ETL Listed
5 years warranty

One BIN range:

Technical datas:

Part Number	Color	Size / reel   L*W*H(mm)	LED qty   per meter	Volt   (V)	Power   (W/M)	IP   degree	Lumens   /meter
2835 70LED/M   CC-N2835-100M-24-70	2700K/3000K/   4000K/6500K	100M*13*5.3mm	70	24V	2W	IP65	240Lm
2835 70LED/M   CC-N2835-40M-24-70	2700K/3000K/   4000K/6500K	40M*13*5.3mm	70	24V	5W	IP65	600Lm
2835 70LED/M   CC-N2835-20M-24-70	2700K/3000K/   4000K/6500K	20M*13*5.3mm	70	24V	10W	IP65	1200Lm
2835 70LED/M   CC-N2835-10M-24-70	2700K/3000K/   4000K/6500K	10M*13*5.3mm	70	24V	15W	IP65	1700Lm
2835 70LED/M   CC-N2835-25M-24-140	2700K/3000K/   4000K/6500K	25M*13*5.3mm	140	24V	8W	IP65	960Lm
2835 70LED/M   CC-N2835-10M-24-140	2700K/3000K/   4000K/6500K	10M*13*5.3mm	140	24V	16W	IP65	1950Lm



Applications:

The Super long Constant current LED strips are widely used in:

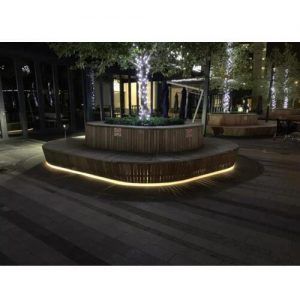

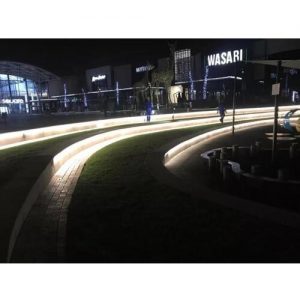

1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting in home rooms or yard
4. Replace traditional under cabinet lights
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use

Packaging:

10m:
Carton size: L610*W462*H278mm
10m/reel,1 roll in an anti-static bag, 25 bags/inner box, 100 bags/Carton

20m:
Carton size: L720*W315*H370mm
20m/reel,1 roll in an anti-static bag, 18 bags/inner box, 36 bags/Carton

30m:
Carton size: L395*W395*H425mm
30m/reel,1 roll in an anti-static bag, 22 bags/Carton
