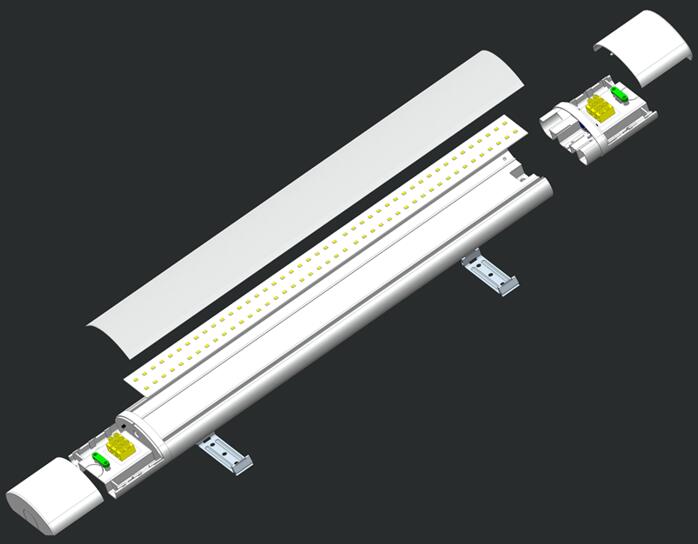

This is the 4th generation intelligent LED batten light made by Haichang Optotech. It has improved sleek design based on the 3rd generation batten light. One end is covered by end cap for wiring box, while the other end is covered by end cap for dimming functions. The end cap is removable. Client can change CCT through toggle switch (slider switch) under the end cap. Sensor parameter can be set too on the inductor under the end cap.

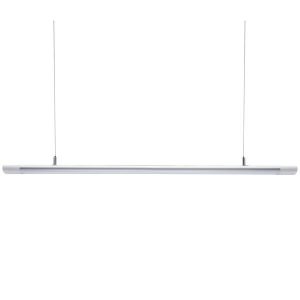

These LED linear lighting fixtures are available in 2ft, 4ft, 5ft, 6ft lengths. It is typically surface mounted. In the meantime, it can be suspended mounted too to serve as pendant light fixtures. These luminaires carry IP44 protection, so they are typically used indoor. For more harsh outdoor places where daisy chain or seamless connection are required, the Linkable LED Tri-proof lights IP66 will be better choice.
Benefits of 4th generation LED Batten lights:
Dimensions:
| Model | Length (A) (mm) |
Width (B) (mm) |
Height (C) mm |
| 2ft/600mm | 590 | 80 | 36 |
| 4ft/1200mm | 1190 | 80 | 36 |
| 5ft/1500mm | 1490 | 80 | 36 |
| 6ft/1800mm | 1790 | 80 | 36 |
Technical Descriptions:
PF>0.93, THD<15%
Power Efficiency≧0.88
Temperature:
Operating -20~+40℃
Storage -40~+60℃
| Model | Tube Dimension |
Power | Input voltage |
CCT | Lumens 100LM/W |
Lumens 120LM/W |
| BL-GENIV-060W20-2835 | 0.6M(36*80*590mm) | 20±1W | AC100~265V | 2700-6500K | 1900-2100LM | 2300-2500LM |
| BL-GENIV-120W40-2835 | 1.2M(36*80*1190mm) | 40±2W | AC100~265V | 2700-6500K | 3800-4100LM | 4600-4900LM |
| BL-GENIV-150W60-2835 | 1.5M(36*80*1490mm) | 60±5W | AC100~265V | 2700-6500K | 5800-6100LM | 7000-7300LM |
| BL-GENIV-180W72-2835 | 1.8M(36*80*1790mm) | 72±6W | AC100~265V | 2700-6500K | 7100-7300LM | 8500-8800LM |
Applications:
The 4th generation LED batten light is designed for application in residential and commercial lighting such as offices, home offices, meeting rooms, hotels, supermarkets, shopping malls, shops, libraries, factories, warehouses, schools, colleges, airports, bus stations, theaters, MTR stations, Exhibition centers, Toll stations, Gymnasiums and other public areas.
Installations:
Watch Video: How to install LED batten luminaire linear light to ceiling surface
Step 3：Open the end cap with INPUT mark according picture 1& picture 2, then open the corresponding preset line hole according to the input cord location, finally connect the cord according picture 3, and fix the cord clip.

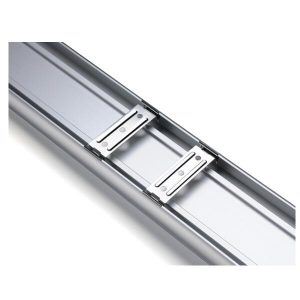

There are two screw install hole on end cap, open the hole, then fix lamp on ceiling or wall by screw.
The connect cord is the same of screw install and clip Install.
Put the wires to the safe place and check all installation process.
Packaging details:
| Length (mm) |
Pieces/CTN (pcs) |
N.W. /pcs (kg) |
G.W./CTN (kg) |
| 2ft (600mm) | 20 | 0.48 | 10.13 |
| 4ft (1200mm) | 20 | 0.88 | 18.49 |
| 5ft (1500mm) | 20 | 1.08 | 18.34 |
| 6ft (1800mm) | 12 | 1.35 | 17.42 |
