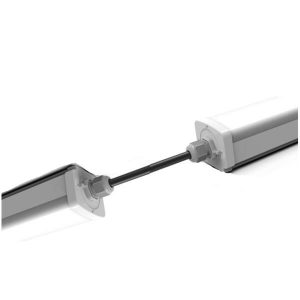

This linkable series LED Tri-proof lights are featured by dustproof, waterproof and corrosion-proof with bright and soft light beam. Multiple fixtures can be linked together to create a daisy chain series (Max.33pcs of 1.5m) by plugging one fixture to another directly, or through electric cables. It is typically surface mounted on wall or ceiling with surface mounting kits. In the meantime, it can be suspended from ceilings with suspension kits to serve as pendant light fixtures. The length is available with 2ft, 4ft and 5ft. One unit of 5 feet 60 watt such luminaire emits 7300 lumens of cool white, natural white, or warm white illumination. The color and power can be freely changeable. Pair with optional microwave motion sensor, increased energy savings can be achieved. Remoted control, DALI & 1-10V dimming, Tuya WIFI, and Emergency function optional.
These integrated LED fixtures has much longer lifetime than fluorescent tri-proof fixtures, which reduces end users’ cost on repair, replacement and maintenance. Weatherproof frosted polycarbonate housing are impact-resistant, and sealed against water and dust. Due to high protection degree of IP65/IP66, these tri-proof luminaires can be widely installed in tunnels, parking garages, warehouses, shops, corridors, kitchens, damp or wet locations, food processing plants, low bays, residential buildings, industrial and commercial facilities.
Features:

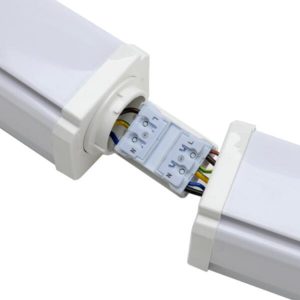

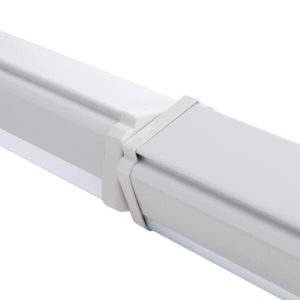

Daisy chain linkable, seamless connection, tool free fast connection
Easy installation: surface mounting / ceiling suspending
CCT&Power adjustable / Sensor / Remoted control / DALI/1-10V / Tuya WIFI / Emergency
IP66/IK08, Waterproof, Dustproof, Corrosion-proof, Humidity-proof
Aluminum housing, fireproof frosted PC cover
Branded SMD LED, CRI >80, beam angle >120°
Color consistency level: <6 SDCM
100~120Lm/watt, 80% lumen maintenance @6000H, Ra80, R9>0
50-80% less power consumption than Fluorescent tube T5/T8 Tri-proof light, Energy saving.
No decrease of light output in cold areas
Solid-state, high shock resistant. No flickering.
50,000 hours lifetime
3~5 years warranty, CE,ROHS,LVD,EMC, SAA certified
Video The best LED shop lights for garages – Linkable, Tri-proof, Linear

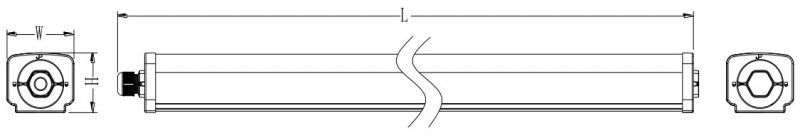

Dimensions:
| Model | Length (L) (mm) |
Width (W) (mm) |
Height (H) mm |
| 2ft/600mm | 630 | 74 | 62 |
| 4ft/1200mm | 1230 | 74 | 62 |
| 5ft/1500mm | 1530 | 74 | 62 |
Technical datas:
CCT Range WW(3000K) NW(4000K) DW(5000K) CW(6500K)
PF>0.93, THD<10%
Temperature:
Operating -20~+45℃
Storage -40~+60℃
| Model | LED quantity |
Dimension | Power | Replace Fluorescent tubes |
Kelvin Tc(K) |
Lumens (Lm) |
| TP-GENIV-060W20-2835 | 2835 LED | 2 Feet 630*74*62mm |
20±2W | 40w | 2700K-6500K | 1900/2450 |
| TP- GENIV-120W40-2835 | 2835 LED | 4 Feet 1230*74*62mm |
40±2W | 80w | 2700K-6500K | 3900/4900 |
| TP- GENIV-150W60-2835 | 2835 LED | 5 Feet 1530*74*62mm |
60±2W | 120w | 2700K-6500K | 5800/7300 |
Applications:
Compared with normal LED batten light fixtures, this type of LED Tri-proof light is designed for application in both indoor and outdoor places, such has tunnels, parking lots, garages, shops, basement, workshops, warehouses, laundry rooms, shops, utility rooms and corridors in residential buildings and commercial lighting projects. For LED lighting applications in indoor lighting, please consider our Linkable LED linear light 7050 with 3 CCT changeable.
Installation Guide
A. STANDARD INSTALLATION (SINGLE UNIT )

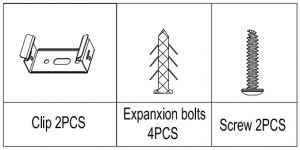

List of accessories
B. LINKABLE INSTALLATION (MULTIPLE UNITS)

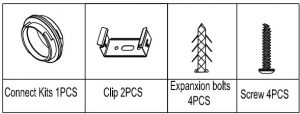

List of accessories
Packaging:
| Length (mm) |
Pieces/CTN (pcs) |
N.W. /pcs (kg) |
G.W./CTN (kg) |
Carton size
(mm) |
| 2ft (600mm) | 16 | 0.78 | 13.5 | 710*360*310 |
| 4ft (1200mm) | 16 | 1.35 | 22.8 | 1310*360*310 |
| 5ft (1500mm) | 16 | 1.60 | 27.7 | 1610*360*310 |
