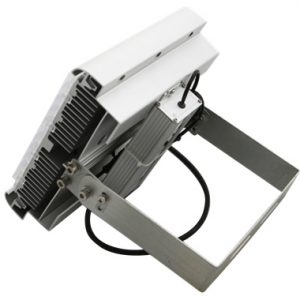

The High power LED Flood lights 40W-360W adopt Modular design and Aluminum alloy housing with IP68 protection which enable excellent resistance to corrosion. Using Philips Lumileds LED module, the anti-glare lighting design with Ergonomic lighting distribution makes sure uniform illuminating effect. The High power LED Flood lights have been widely used in Landscape lighting and Outdoor wall lighting.
Applications:
Landscape lighting, stage lighting, billboard lighting, outdoor wall lighting, indoor part lighting, greening commercial lighting, facade and building lighting, parking lot lighting, factory lighting, area lighting, storage lighting and so on. Typically it is used to light buildings, trees, lawn, supermarket, sculptures, symbols, gymnasiums, squares, advertisement board, parking lots, factories, docks, etc..
Features:
Philips-Lumileds LEDs. Flip chip technology, single unit’s damage won’t affect others’ normal work
Modular design, hot-pluggable technology, easy onsite maintenance and replacement
Whole structure cooling technology
IP68 Optical LED Engine (LED Module), Double-coupling, highest waterproof level
Adjustable range ±360 Degree
Wide power range: 30W~400W
Lumen maintenance of L70 at 50,000 hours, significantly reduce maintenance cost
Multiple light distribution available
Free modular serialization, various power solutions
Die-cast Aluminum housing
Multiple housing colors: black, white, grey, blue
Inventronics/MOSO LED driver (Meanwell driver available upon request)
5 years warranty
Special Technical Advantages:
Air convection effect
It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.
Integral Heat dissipation
It makes clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to enhance cooling effect of radiator of cooling module. The design aims to fully utilize the surface area of structural parts to transfer heat to air.
Tool-free maintenance
Using special structural design to enable manual disassembly and installation of lighting components, convenient and safe.
Double-coupling IP68 protection
It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole; its double silicon-rubber rings insulate LEDs with the outside environment completely, thus to eliminate the possibility of any erosion to chips and PCB boards from outside.
High-efficacy LED Light source
It adopts Lumileds LUXEON T LED source with super efficacy and light output from a compact source. Optimized for efficacy driven applications with typical Vf: 2.7V and low thermal resistance: 3K/W. Specified, targeted and tested hot, at real world operating temperatures, Tj=85℃ to ensure in- application performance.
Free Serialization
It is available to freely equip with different numbers of modules to achieve different power according to the needs.
Electrical, Photometric and Environmental Specification:
Input Voltage: AC100-240V, 50Hz, THD<20%
Standard color temperatures: 3000K, 4000K, 5000K, 5700K
Surge Protection: 10KV
Storage Temperature: -40℃～+50℃
Working Environment: -40℃～+50℃, 10%～90%RH
| Model | Driving Current (mA) | Power (W) | Luminous Efficacy (lm/W) |
Flux (lm) |
PF | Power Efficiency | Beam Angle | LED Brand | CRI |
| FL-40W/50W/60W
-TF2C-1 |
700 | 40 | 110±5 | 4400±200 | 0.95 | 89% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 50 | 105±5 | 5250±250 | ||||||
| 1050 | 60 | 100±5 | 6000±300 | ||||||
| FL-80W/100W/120W-TF2C-2 | 700 | 80 | 110±5 | 8800±400 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 100 | 105±5 | 10500±500 | ||||||
| 1050 | 120 | 100±5 | 12000±600 | ||||||
| FL-120W/150W/180W-TF2C-3 | 700 | 120 | 110±5 | 13200±600 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 150 | 105±5 | 15750±750 | ||||||
| 1050 | 180 | 100±5 | 18000±900 | ||||||
| FL-160W/200W/240W-TF2C-4 | 700 | 160 | 110±5 | 17600±800 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 200 | 105±5 | 21000±1000 | ||||||
| 1050 | 240 | 100±5 | 24000±1200 | ||||||
| FL-200W/250W/300W-TF2C-5 | 700 | 200 | 110±5 | 22000±1000 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 250 | 105±5 | 26250±1250 | ||||||
| 1050 | 300 | 100±5 | 30000±1500 | ||||||
| FL-240W/300W/360W-TF2C-6 | 700 | 240 | 110±5 | 26400±1200 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 300 | 105±5 | 31500±1500 | ||||||
| 1050 | 360 | 100±5 | 36000±1800 | ||||||
| FL-280W/350W-TF2C-7 | 700 | 280 | 110±5 | 30800±1400 | 0.95 | 91% | 12°, 25°, 40°, 60°, 110°, 110°x40° |
Lumileds Luxeon T | >70 |
| 860 | 350 | 105±5 | 36750±1750 |
Lighting Distribution
Drawing
Installation
Maintenance

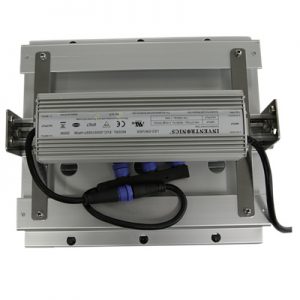

Driver & Electrical Parts
LED Module
Connectors Operation Guide
Packaging details
| Model | Product Size (mm) |
Packing Size (mm) | N.W (kg) |
G.W (kg) |
|
| FL-40W/50W/60W-TF2C-1 | 360*200*95 | 430*265*150 | 3.2 | 4.1 | |
| FL-80W/100W/120W-TF2C-2 | 360*200*175 | 430*265*230 | 4.7 | 5.7 | |
| FL-120W/150W/180W-TF2C-3 | 360*260*255 | 430*335*330 | 5.6 | 6.6 | |
| FL-160W/200W/240W-TF2C-4 | 360*260*335 | 475*430*210 | 6.7 | 8.0 | |
| FL-200W/250W/300W-TF2C-5 | 360*360*415 | 615*430*210 | 8.4 | 9.9 | |
| FL-240W/300W/360W-TF2C-6 | 360*360*495 | 660*430*210 | 9.4 | 11.1 | |
| FL-280W/350W-TF2C-7 | 360*360*575 | 695*430*210 | 10.1 | 11.6 |
