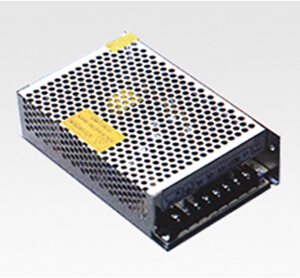

Non-waterproof LED Power Supply 25W – 400W
Features:
Safety standards: GB4943 UL60950 EN60950
EMC standards: GB9254 EN55022 class A
MTBF:>50,000hours
High efficiency
Compact size
Aluminum housing
Wide input voltage
Short circuit protection
Overload protection
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+85℃
Cooling method: convection
Compliant with RoHS, CE certificates
2 years warranty
Technical details:
Output Wattage | Protection Degree | Output Current | Input Voltage | Output Voltage | Dimension (mm) |
25W | IP20 | 2.1A/1A | AC180V-220V | 12V/24V | 110*78*35 |
35W | IP20 | 2.9A/1.5A | AC180V-220V | 12V/24V | 110*78*35 |
60W | IP20 | 5A/2.5A | AC180V-220V | 12V/24V | 129*98*40 |
100W | IP20 | 8.3A/4.16A | AC180V-220V | 12V/24V | 159*98*42 |
150W | IP20 | 12.5A/6.3A | AC90-132V AC180-250V |
12V/24V | 199*98*42 |
200W | IP20 | 16.6A/8.3A | AC90-132V AC180-250V |
12V/24V | 199*110*50 |
250W | IP20 | 20.8A/10.4A | AC90-132V AC180-250V |
12V/24V | 199*110*50 |
300W | IP20 | 25A/12.5A | AC90-132V AC180-250V |
12V/24V | 215*115*50 |
350W | IP20 | 29A/14.6A | AC90-132V AC180-250V |
12V/24V | 256*102*65 |
400W | IP20 | 33A/16.6A | AC90-132V AC180-250V |
12V/24V | 256*102*65 |
