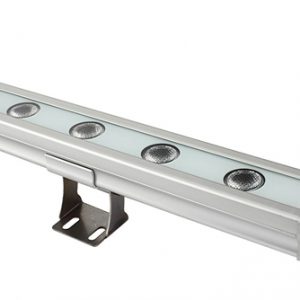

Structural Waterproof LED Wall Washer Light Linear Outdoor RGB X14CA1

Buy decorative RGB Structural waterproof LED wall washer X14CA1 18W and 36W at Haichang Optotech that is perfect for interior or exterior wall,wash applications due to its compact slimline profile.

Category: LED Wall Washers Tags: architectural led lighting, dali, dmx, landscape lighting, led linear wall washer, led strip wall wash lighting, LED Wall Washers, LED Wall Washers 36W, rgb led wall washer outdoor, stage moving head light, wall lighting

Description
Reviews (0)

Buy decorative RGB waterproof LED wall washer X14CA1 18W and 36W at Haichang Optotech that is perfect for interior or exterior wall,wash applications due to its compact slimline profile.

Benefits of Structural Waterproof LED Wall Washer

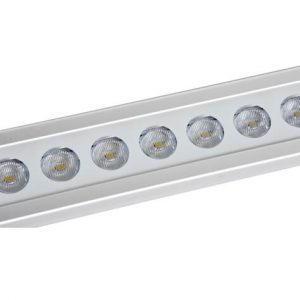

Epistar/Cree/Osram/Bridgelux 1Watt high power LED as light source, energy efficient
Aluminum alloy housing with anodized surface, very low surface temperature
Tempered glass, impact resistant
IP67,corrosion resistant, high quality silicone rubber seal, perfect waterproof
Imported PMMA lens, light transmission up to 93%

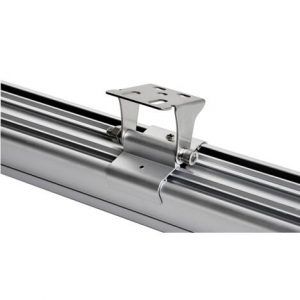

Stainless steel mounting bracket, multi-function, light emitting angle adjustable
Color: Seven static single color, seven color changing, jumping, fading, chasing…
RGB Control mode: internal control or External control by DMX controller
Fast and simple installation. Connecting by standard signal cord and power cord
Ambient Temperature: -25°to 60°
Life Span: > 50,000 hours
Warranty: 2 years

Technical details:

Power consumption: 18W, 36W
Input Voltage: AC100V~AC240V
Working voltage: DC24V
Beam Angle: 15-60 degree
Projection Distance: 10-50 meters
IP degree: IP 67 Waterproof & dustproof)
Electrical protection: Class I
Temperature range for outdoor applications: -30℃ to 60℃
Size: 1000*58*80mm

Model	Power (W)	Light source	Viewing angle	Voltage (V)	Dimension	IP degree	Color
					(mm)
WW-18W-24-X14CA1	18x1W	Epistar LED	15*50° 30°,45°,60°	DC24V	5005880 (LWH)	IP67	RGB
WW-18W-24-X14CA1				DC24V		IP67	White
WW-18W-24-X14CA1				DC24V		IP67	Warm white
WW-36W-24-X14CA1	36x1W	Epistar LED	15*50° 30°,45°,60°	DC24V	10005880 (LWH)	IP67	RGB
WW-36W-24-X14CA1				DC24V		IP67	White
WW-36W-24-X14CA1				DC24V		IP67	Warm white

Applications of Structural Waterproof LED Wall Washer:

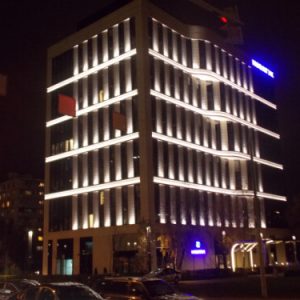

Our LED wall washers lights X14CA1 are widely used in stage lighting, accent lighting, architectural lighting, landscape lighting, flood lighting, wall wash lighting, in areas including commercial buildings, bars, entertainment plazas, hotels, resorts, parks, museums, art galleries, etc.

How can DMX and DALI luminaires be combined in a single system?

There are many valid reasons why you might end up with both DMX and DALI fixtures on a project. For example, the fixture you need may only be available in one of the two protocols. So what are your options, and what are the advantages and disadvantages of each approach?

Protocol converters

The benefit of using a converter is that after initial setup, you only need to maintain a single control system. The drawback is that DALI and DMX are very different protocols and cannot achieve the same system functionality or results

There is a wide selection of DMX to DALI and DALI to DMX converters in the market, all operating with a slightly different approach.

Some considerations when selecting a DMX to DALI converter:

• What is outputted on the DALI bus? Can you recall scenes, or only adjust intensities? Can you control individual fixtures, or does it broadcast only?

• Refresh rates. Because DALI has a slower protocol, it will take seconds to send individual information to 64 DALI luminaires. When translating only a single DMX value (such as broadcast this to all connected fixtures) the speed can reach up to half that of the DMX.

• Repeating messages. Many converters will continuously send DALI messages on the bus, even if the DMX values stay the same. If you have sensors, button stations or other items on the DALI bus, this might not work, as the bus is flooded with DALI messages.

Some considerations when selecting a DALI to DMX converter:

• How are the ‘DALI ballasts’ mapped to DMX? If I use RGB DMX fixtures, does this require three virtual DALI ballasts? Can I use all 512 addresses on the DMX bus, or must I start at one?

• How does it handle DALI fade times on the DMX side?

• Can I recall dynamic effects?

Two independent control systems

You could simply install two separate systems, one for DMX and one for DALI. Of course, the drawback is that the systems will need to be programmed and operated independently, so for example you cannot ‘turn everything on/off’ or ‘change the setting’ with a single push of a button.

Simple linking

Many controllers offer the ability to be triggered via contact closures. You could add some relay outputs to system A, and use these as inputs to system B. This will involve a lot of hardware and installation effort with limited results. Even though this happens regularly, this should really be considered a

substandard solution.

Controller integration

Integrating two control systems sounds complicated, but it does not need to be. If your controller can be triggered by the other protocol, you can simply use that protocol to communicate between the two systems, while retaining the advantages of each protocol.

Suppose you have a DALI system where a group will be replaced by DMX luminaires that need to show some dynamic scenes. If your DMX controller can be triggered by DALI, you can use the DALI messages to recall scenes and set intensities on your DMX fixtures.

Similarly, if you have a DALI control system that can be triggered by DMX, you could use a specific DMX channel for DALI scene recall, another DMX channel for intensity broadcast, and so on. The control system needs to be intelligent enough to only send DALI messages in case of relevant changes in DMX values.

System integration can become very advanced and use other communication methods than DMX or DALI, but if you just want to combine DMX and DALI, it can be very simple. Pharos offers a control lighting solution that can be used to augment a DALI installation with DMX or vice versa.

A controller system that supports both protocols

This is the most flexible and powerful solution, and in many respects the simplest. There are control systems that simply support both DMX and DALI, achieving the best of both worlds. These need not be advanced building management systems, they can also be simple standalone DIN-rail controllers. The Pharos TPC and EXT accessory is an example of a simple system that will control and output both DMX as well as DALI.

Of course, such a controller cannot overcome the fundamental limitations of each protocol, such as making DALI fixtures do the same dynamic effects as DMX, but will help you in programming the environment to be set up to your dynamic and static lighting scenes as required.

Besides DMX and DALI, there are other lighting control protocols such as Bluetooth, Zigbee, and DMX over Ethernet. Choosing a control system that can natively speak to other specific protocols you have in your project is a good recipe to ensure you receive a great programming experience.

Pharos controllers can output DMX512, DALI, and DMX over Ethernet protocols like Art-Net, KiNet, and sACN. Furthermore, Pharos IO modules allow you to directly control Xicato, Hue, Philips Dynalite (and more to come) luminaires and load controllers, that can be fully integrated with your DMX and DALI programming.
