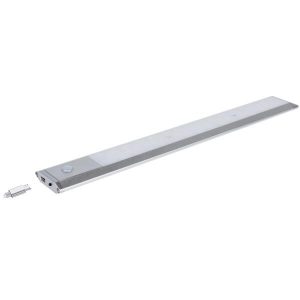

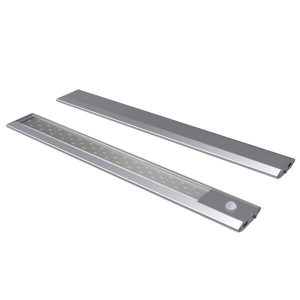

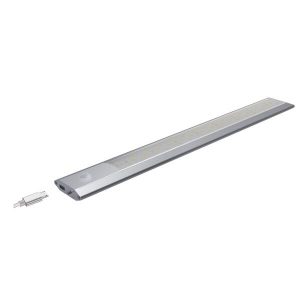

The LED Germicidal Under Cabinet light bar utilizes UV LED (Ultraviolet C and A) and normal high bright SMD LED to kill viruses, bacteria and germs while providing normal lighting in wardrobe, closet or cupboard at homes for health lighting purpose. The UV LED light bar has 3M tape and magnetic clips on backside, so it can be flexibly installed anywhere in under cabinet places and can be easily taken off for battery charging through USB. The UV LED bar has a PIR sensor which can detect 3-5m human motion. The fixture provides both lighting and sterilization functions.
Related UVC LED Lighting products:
For hospital and health facilities sterilization, please check our UVC LED Panel Light for hospital Sterilization and Disinfection
For sterilization during traveling or at home or office rooms, please check our Portable UV LED Disinfection lights Bar
Features:
2-in-1 Dual function: Sterilization + White lighting
3535 LED (UVA+UVC) + 2835 LED
PIR infrared Sensor, 3-5 meters Excellent Sensor Sensitivity
Built-in USB Rechargeable 5V Lithium Battery (AC adaptor available)
99% Sterilization rate of SARS-CoV-2,mycobacterium,hand-foot-mouth virus,fungus,mites,spores,flu virus and bird flu virus.
Fast mounting by Magnetic clips on back
Touch switch on/off
Android charging chord included
CE and RoHS Certified
OEM available
Warranty: 2 years
Working Principle of Motion Sensor and Press Switch:
1. With passive PIR infrared technology, human motion can be detected in the dark: Auto-on within 3-5 meters once human motion detected. After 20 seconds of no motion detected, it will automatically turn to UVC sterilization mode (purple color) and continue to sterilize for 59 seconds until auto-off.
2. With touch press switch, short press for white lighting mode, auto-off after about 20 seconds of no motion detected. Long press for 5 seconds to turn on UVC sterilization mode (purple color) for 59 seconds. Short press again to power off.
3. Under UVC sterilization mode, it will be automatically turn off immediately and then turn into ordinary white light.
Video How to use UVC LED Germicidal Lamps to sanitize Coronavirus in your car,wardrobe and under cabinets
A Germicidal lamp is a special type of lamp that produces ultraviolet C (UVC) light. This short-wave ultraviolet light disrupts DNA base pairing, causing formation of pyrimidine dimers, and leads to the inactivation of bacteria, viruses, and protozoa. It can also be used to produce ozone for water disinfection.
There are three common types available:
• Low-pressure lamps
• High-pressure lamps
• LEDs (UV-C, UV-A)
Ultraviolet spectrum sterilization process
The absorption of light by bacteria and virus has a peak at 250-280nm. The absorbed ultraviolet light can destroy the DNA structure of bacteria or virus to cause its death or loss of reproduction ability, in this way the purpose of sterilization is achieved.
UV spectrum sterilization ratio

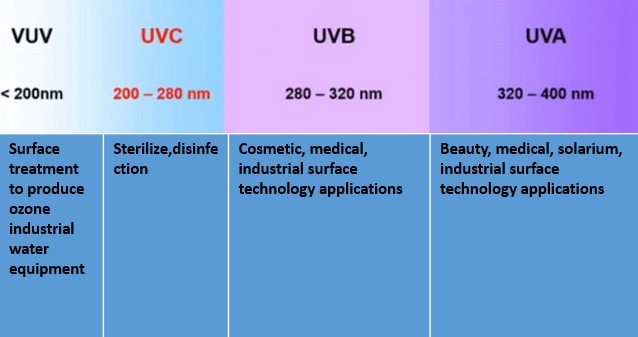

Typical Applications of Deep UV LEDs
Product Size：
| Model No. | Length | Width | Height |
| UVC-CBT-C1 | 300mm | 40mm | 10 |
| UVC-CBT-C2 | 600mm | 40mm | 10 |
Technical datas:
Power: 2W+2W, 4W+4W
Size: 300*40*10mm, 600*40*10mm
Wavelength: 275nm(UVC)+395nm(UVA)+5000k(White LED)
Light source: SMD3535(UVA+UVC) + SMD2835
Light body material: aluminum
Input voltage: 5V
Sterilization rate: 99%
Lumen maintenance rate: > 20,000H at 25°C
Beam angle: 140°
IP rating: IP20
Lifetime: W:50000H / UVC:8000H
Operating Temp: -40℃~ 50℃
Advantages of Deep UV LEDs:
Safety: Low voltage, no ozone generation, no mercury
High efficiency: high Irradiance
Environmental protection: UV LED does not contain any toxic substances. Reliable: switch characteristics, life time, low temperature usable
Convenient: small size, low voltage, low current.
Compared with traditional mercury lamps, deep ultraviolet LED lamps are good complementary with following characteristics:
Single wavelength, adjustable wavelength, half-wave width is less than 10nm
High irradiance (light intensity per unit area), although the radiant power is very low
High frequency response
Very small size
Low voltage and low current
Irradiation intensity can be adjusted
Long life: 20,000 hours (50% light decay)
Attention:
1. People, animals and plants must leave the site and avoid looking directly at the UV light source
2. The recommended sterilization time is more than 30 minutes
3. After sterilization, ventilate with the site to dispel the odor remaining after the death of bacteria and viruses
4. To ensure the sterilization effect, clean the lamp with a clean and dried cloth each time before use

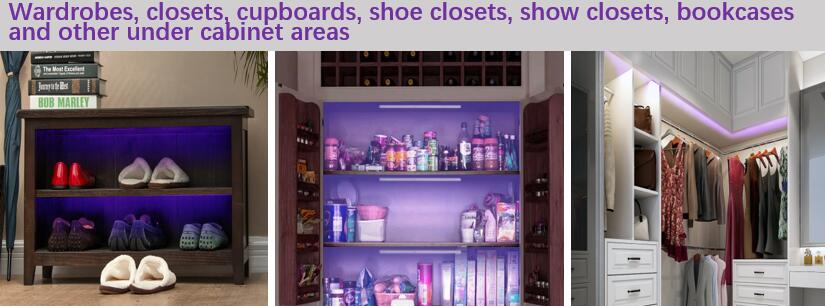

Applications:
The UV LED Germicidal lamp can be widely used for sterilization and night light of wardrobes, closets, cupboards, shoe closets, show closets, bookcases and other under cabinet areas in homes for better health lighting.
One UV sterilizer in the hand, killing viruses and bacteria in seconds
99.99% sterilization rate
99.99% mite removal rate
